Technical details

  Maxima 30 CC Maxima 40 CC
Dimensions
Total length 23200 mm 23200 mm
Total height ? mm ? mm
Total width 2900 mm 2900 mm
Axle characteristics
Wheel diameter 1150 mm 1150 mm
Axle arrangement Co'Co' Co'Co'
Track gauge 1435 mm 1435 mm
Weight
Total weight up to 126 tonnes up to 135 tonnes
Axle load up to 21 tonnes up to 22.5 tonnes
Traction performance
Top speed 120 km/h 120 km/h
Starting tractive effort 408 kN 408 kN
Propulsion characteristics
Fuel tank capacity 10000 L 9000 L
Diesel engine manufacturer ABC ABC
Diesel engine type 12V DZC 16V DZC
Power rating 2750 kW 3600 kW
Number of cylinders 12 16
Rated speed 1000 rpm 1000 rpm
Transmission manufacturer Voith Voith
Transmission type LS 640 reU2 "Turbosplit" LS 640 reU2 "Turbosplit"
Emission standards
Noise TSI CR Noise TSI CR Noise
Exhaust EU 97/68 Stage IIIA EU97/68 Stage IIIA

Production list - Maxima 30CC

Manufacturer: Works number: Year of construction: Type: Axle configuration: Company Locomotive number
Voith L06-30001 2008 Maxima 30 CC C'C'-dh VTLT 92 80 1263 001-0 D-VTLT 28 pictures(s) available Revisions available
Voith L06-30002 2009 Maxima 30 CC C'C'-dh SGL V 400.11 24 pictures(s) available
Voith L06-30003 2009 Maxima 30 CC C'C'-dh Railco 92 54 2783 001-1 CZ-RCO 33 pictures(s) available Revisions available
Voith L06-30004 2010 Maxima 30 CC C'C'-dh VTLT 92 80 1263 004-4 D-VTLT 25 pictures(s) available Revisions available
Voith L06-30005 2010 Maxima 30 CC C'C'-dh VTLT 92 80 1263 005-1 D-VTLT 26 pictures(s) available Revisions available
Voith L06-30006 2010 Maxima 30 CC C'C'-dh Structured Lease 263 006-9 45 pictures(s) available Revisions available

Production list - Maxima 40CC

Manufacturer: Works number: Year of construction: Type: Axle configuration: Company Locomotive number
Voith L06-30017 2006 Maxima 40 CC C'C'-dh STOCK 264 001-9 34 pictures(s) available Revisions available
Voith L06-30018 2008 Maxima 40 CC C'C'-dh Raildox 264 002-7 38 pictures(s) available Revisions available
Voith L06-40003 2008 Maxima 40 CC C'C'-dh STOCK 92 80 1264 003-5 D-STOCK 42 pictures(s) available Revisions available

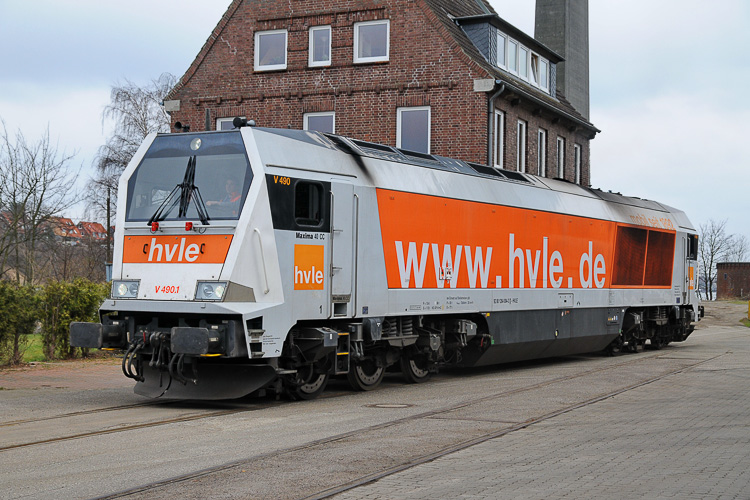

Voith L06-40004 2008 Maxima 40 CC C'C'-dh hvle V 490.1 25 pictures(s) available Revisions available
Voith L06-40005 2008 Maxima 40 CC C'C'-dh Starkenberger 92 80 1264 005-0 D-TRG 48 pictures(s) available Revisions available
Voith L06-40006 2008 Maxima 40 CC C'C'-dh SGL V 500.06 44 pictures(s) available Revisions available
Voith L06-40007 2009 Maxima 40 CC C'C'-dh A.D.E. 92 80 1264 007-6 D-ADE 42 pictures(s) available Revisions available
Voith L06-40008 2009 Maxima 40 CC C'C'-dh hvle V 490.3 35 pictures(s) available Revisions available
Voith L06-40009 2009 Maxima 40 CC C'C'-dh NRS 92 80 1264 009-2 D-NRS 36 pictures(s) available Revisions available
Voith L06-40010 2010 Maxima 40 CC C'C'-dh SGL V 500.17 26 pictures(s) available Revisions available
Voith L06-40011 2010 Maxima 40 CC C'C'-dh Wiebe 92 80 1264 011-8 D-BLP 37 pictures(s) available Revisions available
Voith L06-40040 2009 Maxima 40 CC C'C'-dh hvle V 490.2 28 pictures(s) available Revisions available
Voith L06-40041 2009 Maxima 40 CC C'C'-dh Voith 92 80 1264 013-4 D-VTLT 37 pictures(s) available
